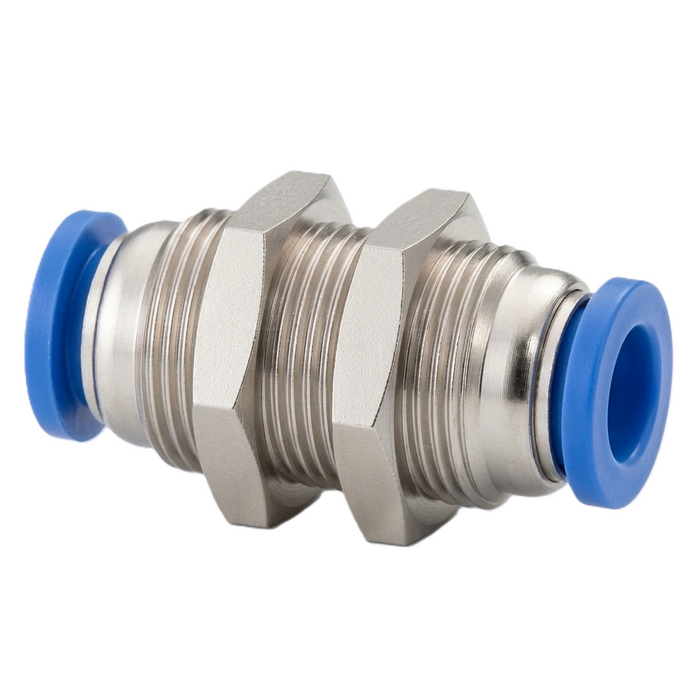

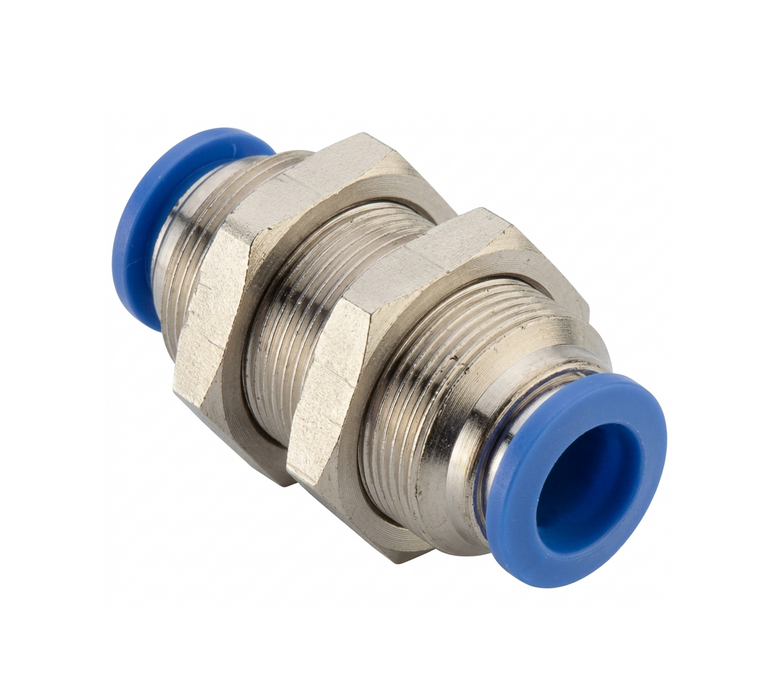

The SPM Pneumatic Push-to-Connect Bulkhead Union Fitting is designed to connect two sections of pneumatic tubing through a panel or bulkhead, providing a secure, leak-free connection while allowing easy installation and maintenance. Featuring a push-to-connect mechanism, the fitting enables quick tube insertion and removal without the need for specialized tools, reducing installation time and improving system efficiency.
Manufactured from high-quality engineering plastic with corrosion-resistant metal components, the SPM bulkhead union fitting offers excellent durability, reliable sealing, and long service life in demanding industrial environments. Its threaded bulkhead design allows the fitting to be securely mounted through machine panels, cabinets, or equipment walls, creating neat and organized pneumatic tubing layouts.
Features
• Push-to-connect design for quick and easy tube installation.
• Bulkhead mounting for secure panel or enclosure installation.
• Connects two tubes of the same outside diameter through a panel.
• Reusable design allows repeated tube insertion and removal.
• High-strength engineering plastic body with nickel-plated brass threaded components.
• Excellent sealing performance with low air leakage.
• Compact, lightweight construction for space-saving installations.
• Suitable for compressed air, vacuum, and inert gas applications.
Applications
• Pneumatic automation systems
• Industrial machinery and equipment
• Control panels and pneumatic cabinets
• Packaging and processing equipment
• Robotics and automation systems
• Air distribution systems
• Factory automation and assembly lines
Specifications
• Type: Bulkhead Union Push-to-Connect Fitting
• Connection: Tube-to-Tube (Same Tube Size)
• Mounting: Bulkhead (Panel Mount)
• Tube Sizes: Metric (4–16 mm) and Inch (5/32"–5/8") depending on model
• Operating Medium: Compressed air, vacuum, inert gases
• Operating Pressure: Up to 1.0 MPa (10 bar)*
• Operating Temperature: 0°C to 60°C*
• Body Material: Engineering Plastic (PBT)
• Seal Material: NBR (Nitrile Rubber)
