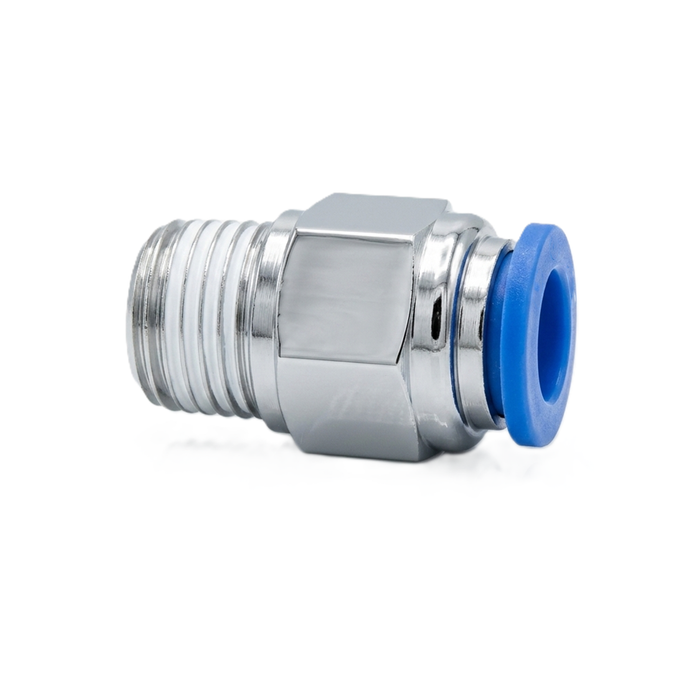

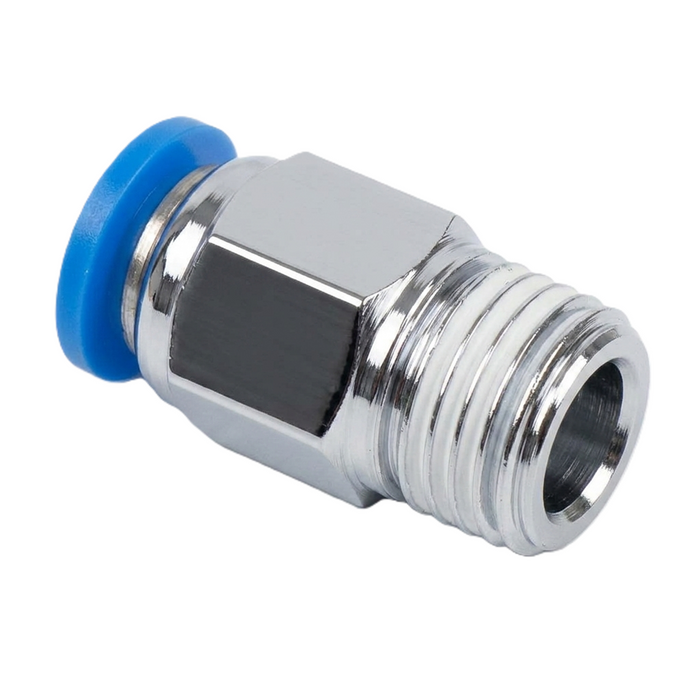

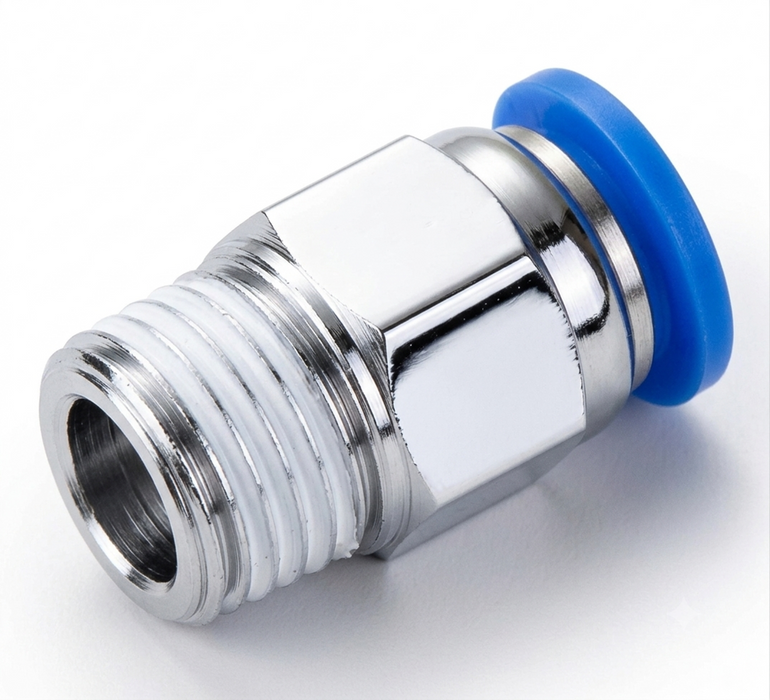

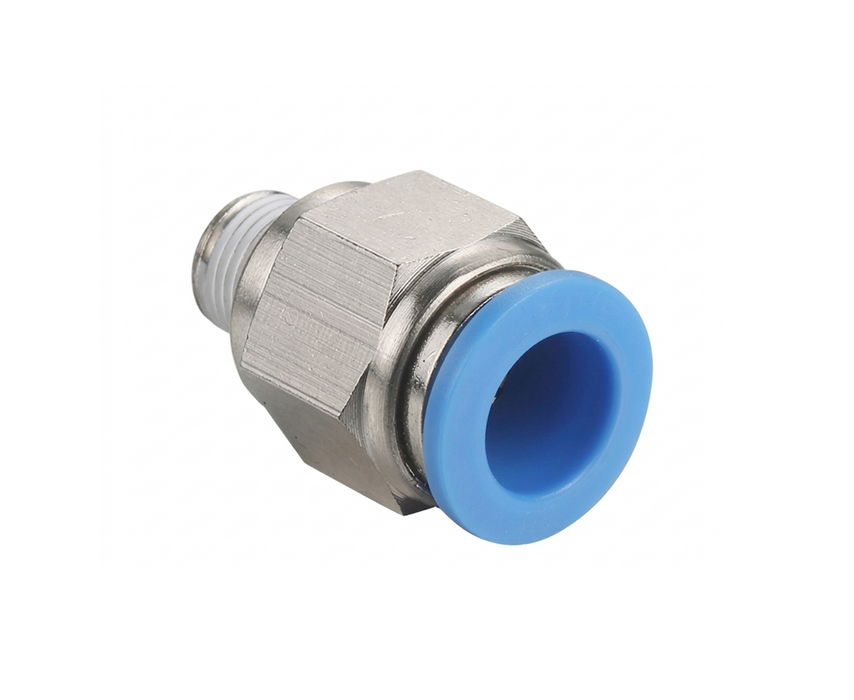

The JPC Male Straight Push-to-Connect Pneumatic Fitting (also commonly designated as PC Male Connector in pneumatic fitting catalogs) is a one-touch male straight pneumatic fitting used to connect polyurethane (PU), nylon, or polyethylene tubing directly to a female-threaded pneumatic port such as an air cylinder, solenoid valve, FRL unit, manifold, or compressor component. The tubing is inserted into the fitting by hand and automatically locked by an internal collet mechanism.
Key Features
• One-touch push-to-connect design for quick installation
• Straight male connector for inline pneumatic connections
• Leak-resistant NBR seal for dependable performance
• Nickel-plated brass thread for corrosion resistance
• Stainless steel gripping claw ensures secure tube retention
• Reusable fitting with easy tube release

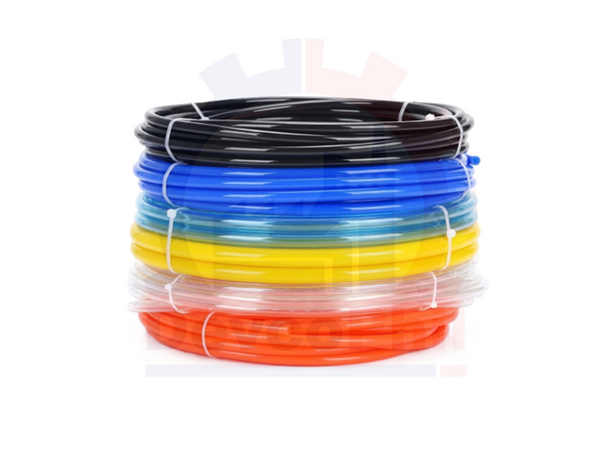

• Compatible with PU, PA (Nylon), PE, and PVC tubing
• Suitable for compressed air, vacuum, and non-freezing water applications
• Available in a wide range of tube diameters and thread sizes
Typical Applications
• Pneumatic automation systems
• Air compressors
• Air cylinders
• Solenoid valves
• FRL (Filter-Regulator-Lubricator) units
• Packaging machinery
• Robotics
• CNC machines
• Industrial manufacturing equipment
• General compressed air distribution systems
Installation Method:
1. Cut the PU tube square (90°).
2. Push the tube fully into the fitting until it seats against the internal stop.
3. Pull gently to verify locking.
4. To disconnect, press the release collar and pull out the tube.
