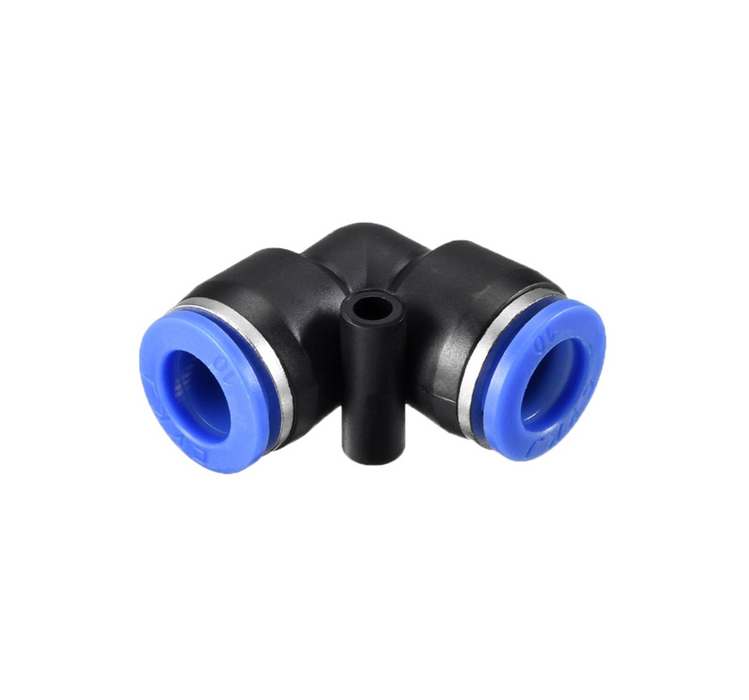

The PUL (PV) Union Elbow is a pneumatic fitting designed to connect two pneumatic tubes of the same outside diameter (OD) at a 90-degree angle. It is used when tubing needs to change direction while maintaining a secure, leak-free connection.
Unlike threaded elbow fittings, the PUL fitting has push-to-connect ports on both ends, making it ideal for tube-to-tube connections.

Features
• 90° elbow configuration
• Push-to-connect tube connections on both ends
• Quick installation and removal
• Compact and lightweight design
• Reusable fitting
• Leak-resistant sealing
• Suitable for compressed air and vacuum service

Applications
• Pneumatic control systems
• Air tubing routing in confined spaces
• Automation machinery
• Packaging equipment
• Pneumatic cylinders and valves
• Robotics and assembly lines

Function
The PUL (PV) Union Elbow allows two equal-sized pneumatic tubes to be connected at a right angle, helping reduce tubing bends and improve installation neatness while maintaining efficient airflow.

Component - Material
Body: Engineering Plastic (PBT)
Seal: NBR Rubber
