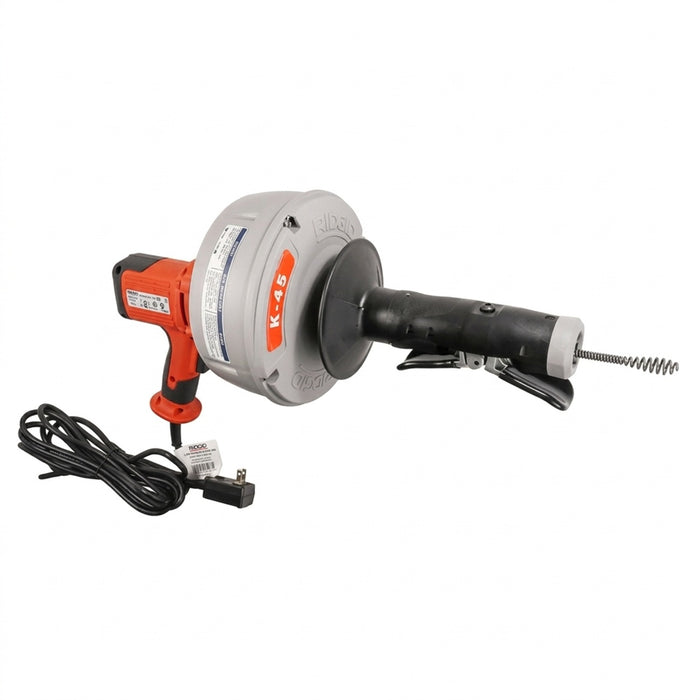

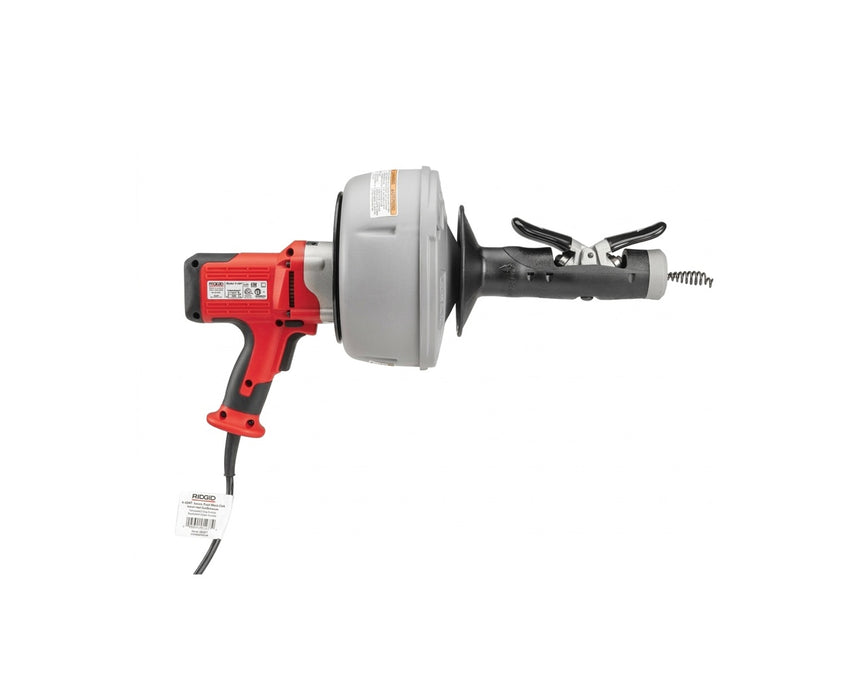

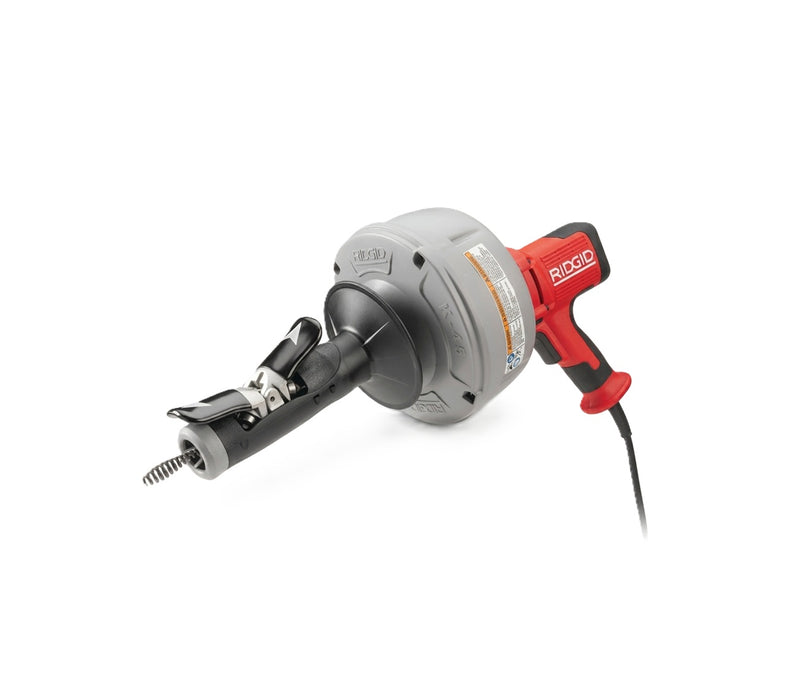

RIDGID K-45 Sink Machine — Cat. No. 49253

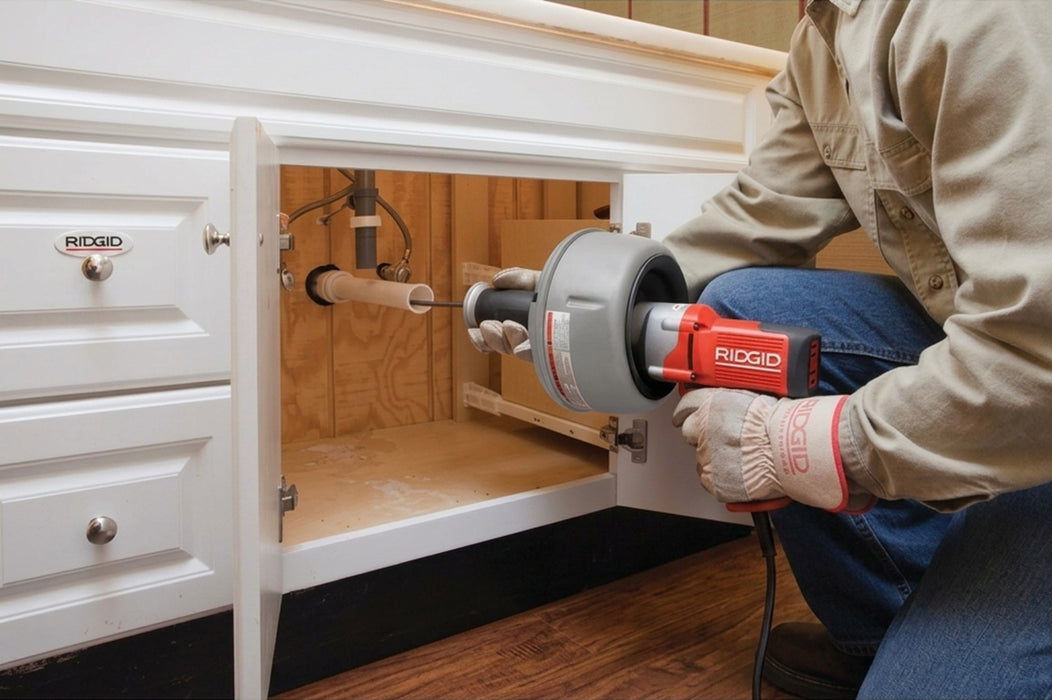

The RIDGID K-45AF-7 Sink Machine, Cat. No. 49253 is a professional portable drain-cleaning machine designed for clearing clogged lavatory, sink, urinal, tub and shower drain lines. It uses RIDGID's two-way AUTOFEED® system to advance and retrieve the cable without reversing the motor. The K-45 platform uses a variable-speed motor capable of rotating the cable at up to 0–600 RPM.

The K-45AF-7 is the more comprehensive K-45 package, combining the compact K-45 drain-cleaning machine with multiple cables, inner drums, cutting tools and a carrying case. The included 3/8-in. cable extends its cleaning capability to drains up to approximately 2-1/2 in. (64 mm).

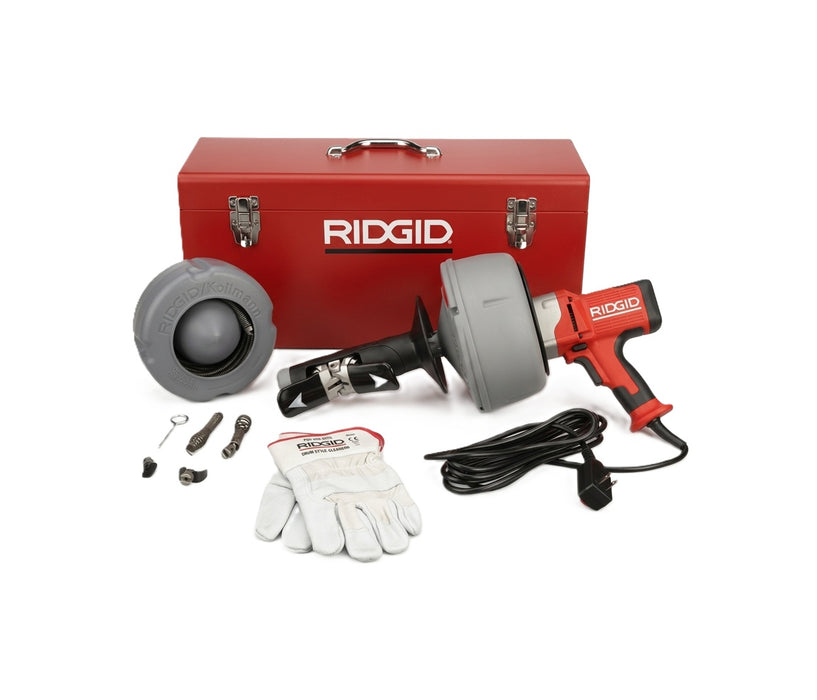

Standard Equipment for K-45AF-7

• C-1IC — 5/16" × 25 ft (8 mm × 7.6 m) inner-core cable with inner drum
• C-6 — 3/8" × 35 ft (10 mm × 10.7 m) cable with inner drum
• C-21 — 5/16" × 50 ft (8 mm × 15.2 m) cable with inner drum
• T-250 five-piece tool set
o T-203 Bulb Auger
o T-205 "C" Cutter
o T-210 Grease Cutter
o T-217 Drop-Head Auger
o A-13 Pin Key
• C-6429 Carrying Case

Key Features

1. AUTOFEED® cable control — advances and retrieves the cable using a lever, helping keep hands and the work area cleaner.
2. Variable-speed operation — cable rotation from 0 to 600 RPM.
3. Interchangeable inner drums — allows different cable sizes/configurations to be used.
4. Compact handheld design — suitable for service work where a larger sectional or drum machine would be impractical.
5. Multiple cable sizes — the AF-7 package provides both 5/16" and 3/8" cable configurations.
6. Extended drain capability — the 3/8" cable increases the K-45's capability for larger small-diameter drain lines.
7. Professional tool set and carrying case — suitable for field service and maintenance applications.
