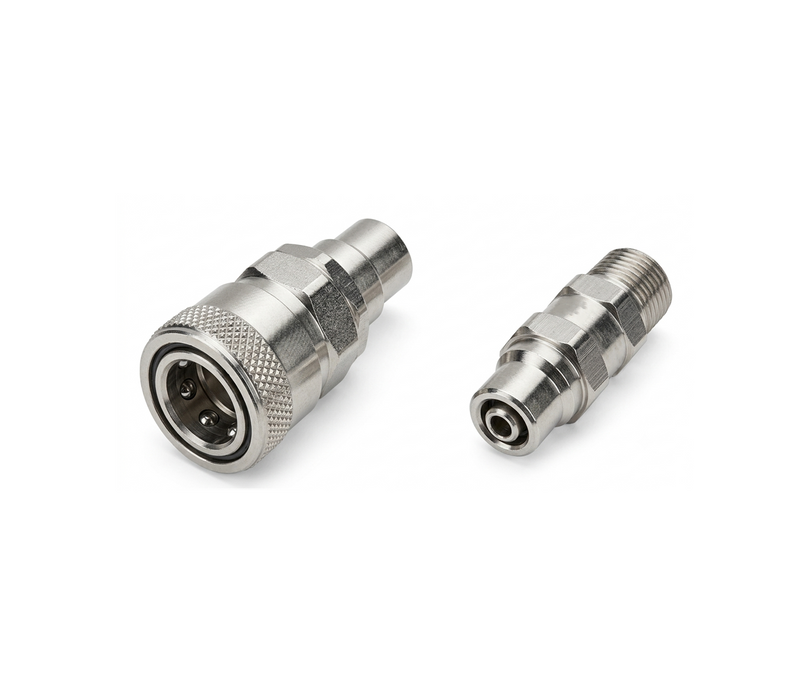

The Pneumatic C-Type Quick Connector is a quick-connect fitting used in compressed air systems to connect and disconnect air hoses, pneumatic tools, cylinders, and equipment without using tools. The female socket contains an internal locking mechanism that automatically locks onto the male plug when inserted.
In Pneumatic C-Type Quick Connectors, PP and SP usually identify the two mating halves of the coupling set:

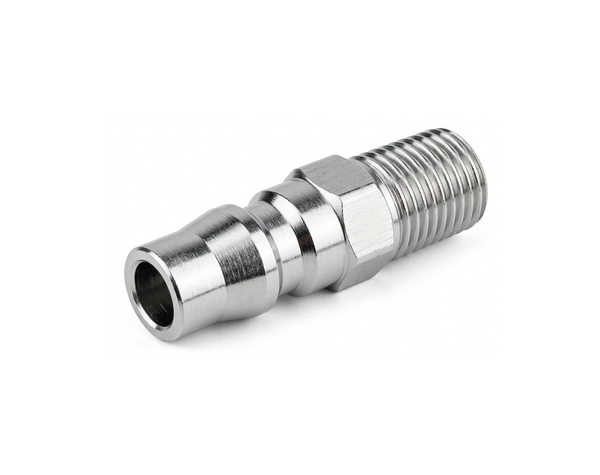

• PP = Plug Pneumatic (Male Plug)
o The male/nipple side of the quick connector.
o Installed on the hose, tool, or equipment connection.
o Inserts into the socket and locks automatically.
• SP = Socket Pneumatic (Female Socket/Coupler)
o The female coupler side with the locking sleeve.
o Connected to the compressed air supply line.
o Receives the plug and provides the automatic locking mechanism.
Features:
• One-touch connection and disconnection
• Automatic locking mechanism
• Durable steel or brass construction with nickel/chrome plating
• Leak-resistant sealing
• Suitable for compressed air applications
• Interchangeable with standard C-Type pneumatic couplings
Common Applications:
• Air compressors
• Pneumatic tools
• Manufacturing equipment
• Automotive workshops
• Spray painting systems
• Industrial air lines
Specification:
Coupling Type: C-Type Quick Coupling
Connection Type: Socket and Plug
Body Material: Chrome-Plated Steel
Working Medium: Compressed Air
Working Pressure: Up to 150 psi (10 bar) Typical
Maximum Pressure: Up to 300 psi (20 bar) depending on model
Working Temperature: -20°C to +80°C
Thread Type: NPT
