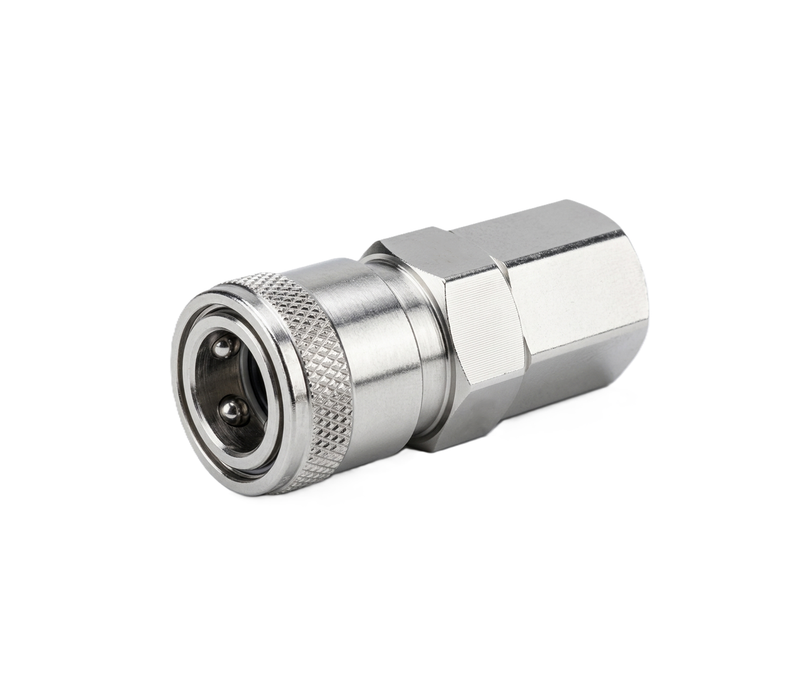

The SF Pneumatic Socket Female Coupler (also called a Female Thread Quick Coupling Socket) is a quick-connect coupling series used for compressed air and fluid transfer applications.

The SF Socket Female Coupler consists of:

• A female quick-connect socket body with an internal locking-ball mechanism.
• A female threaded connection NPT thread for installation onto male-threaded equipment, manifolds, valves, or piping.
• An automatic shut-off valve that closes when the plug is disconnected, minimizing air or fluid loss.
• A knurled sleeve for easy one-hand connection and disconnection.

Features:

• One-Touch Connection and Disconnection
• Automatic Locking Mechanism
• High Flow Performance with Low Pressure Loss
• Leak-Resistant Design
• Interchangeable with Standard C-Type Couplings

Specification:

Coupling Type: C-Type Pneumatic Quick Coupler (Female)
Connection (Thread): Female Thraed NPT
Body Material: Chrome-Plated Steel
Seal Material: NBR (Buna-N)
Working Pressure: 0-0.9 MPa (0-130 psi)
Maximum Pressure: 1.5 MPa (215 psi)
Working Temperature: -20°C to +80°C
Suitable Medium: Compressed Air
Interchangeability: Interchangeable with C-Type Coupler
