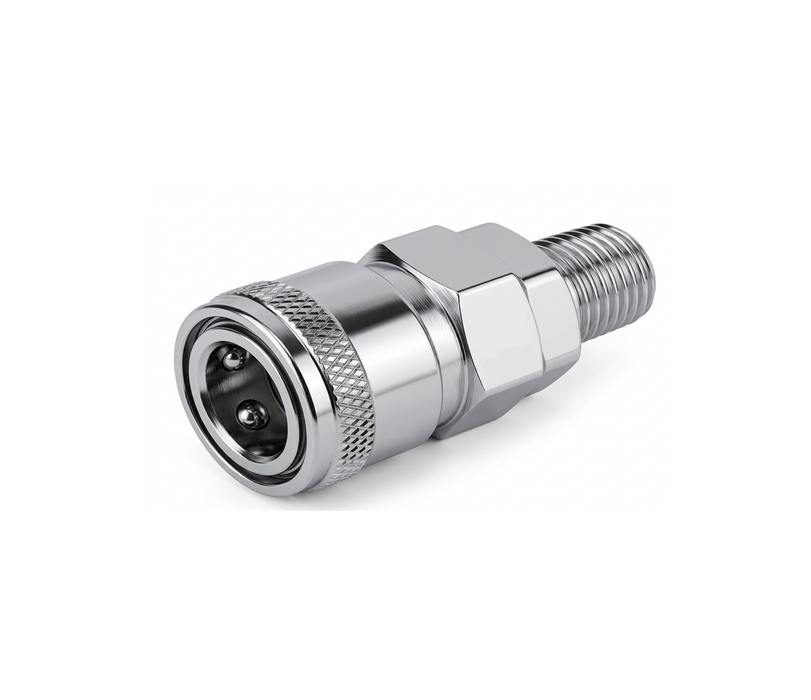

The SM Pneumatic Socket Male Coupler is a quick-connect pneumatic or hydraulic coupling designed for fast and secure connection of fluid or air lines. It consists of a female socket body with an integrated ball-locking mechanism and a male threaded connection for attachment to equipment, valves, manifolds, pipes, or hoses.
The coupling allows one-hand operation and provides a reliable, leak-resistant connection when used with the corresponding plug. Its knurled sleeve improves grip during connection and disconnection, making it suitable for industrial, pneumatic, hydraulic, automotive, and manufacturing applications.
Key Features:
• Quick-connect and disconnect design
• Secure ball-locking mechanism
• One-hand operation
• Leak-resistant sealing
• Corrosion-resistant metal construction
• High flow capacity with minimal pressure drop
• Durable knurled sleeve for easy handling
• Compatible with matching quick-connect plugs
Typical Applications:
• Compressed air systems
• Pneumatic tools
• Hydraulic circuits
• Industrial automation
• Manufacturing equipment
• Chemical transfer systems
• Automotive service equipment
• General fluid handling
Main Components:
1. Socket body (female receptacle)
2. Ball-lock mechanism
3. Sliding sleeve
4. Internal sealing O-ring
5. Hexagonal wrench section
6. Male threaded connection
Specification:
Coupling Type: C-Type Pneumatic Quick Coupler (Male)
Connection (Thread): Male Thraed NPT
Body Material: Chrome-Plated Steel
Seal Material: NBR (Buna-N)
Working Pressure: 0-0.9 MPa (0-130 psi)
Maximum Pressure: 1.5 MPa (215 psi)
Working Temperature: -20°C to +80°C
Suitable Medium: Compressed Air
Interchangeability: Interchangeable with C-Type Coupler
