The RIDGID 811A and 815A Die Heads are professional-grade threading heads designed for use with RIDGID power threading machines. Both models cover 1/8" to 2" NPT pipe, use universal dies, provide through-the-head oiling, and are designed for right-hand (RH) threading. RIDGID lists both as optional die heads for machines including the Model 300/300 Compact, 535/535A and 1215 series.

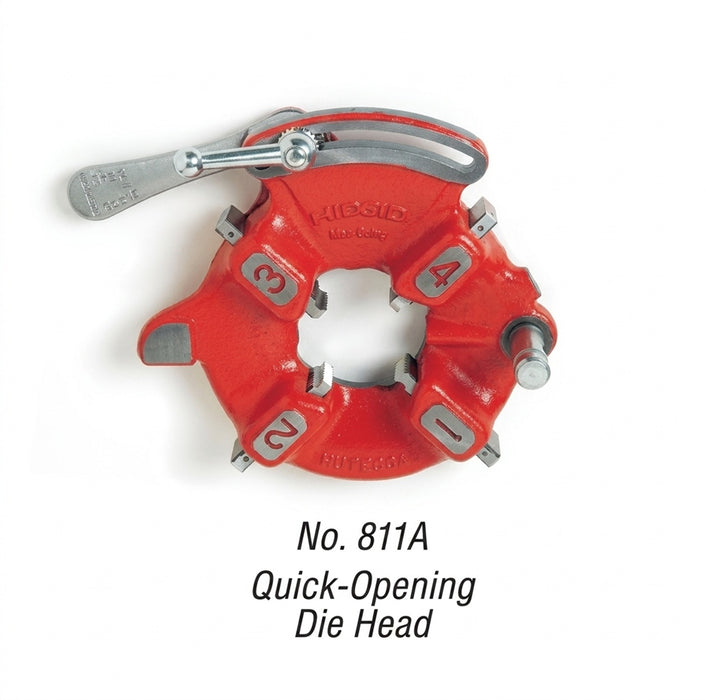

1. RIDGID Model 811A – Cat. No. 97065
The RIDGID 97065 Model 811A is a 1/8"–2" NPT Quick-Opening Die Head for right-hand pipe threading. Its quick-opening mechanism allows the operator to manually release the die head at the desired thread length, making it particularly useful where different thread lengths are required. The head incorporates through-the-head oiling to deliver cutting oil directly to the threading dies during operation.
Key features
• Quick-opening (Q.O.) design
• Right-hand NPT threading
• Uses universal dies
• Through-the-head oiling
• Pipe capacity: 1/8"–2"
• Suitable for production and general pipe-threading applications
• RIDGID lists it as standard equipment on several Model 300 Compact configurations.

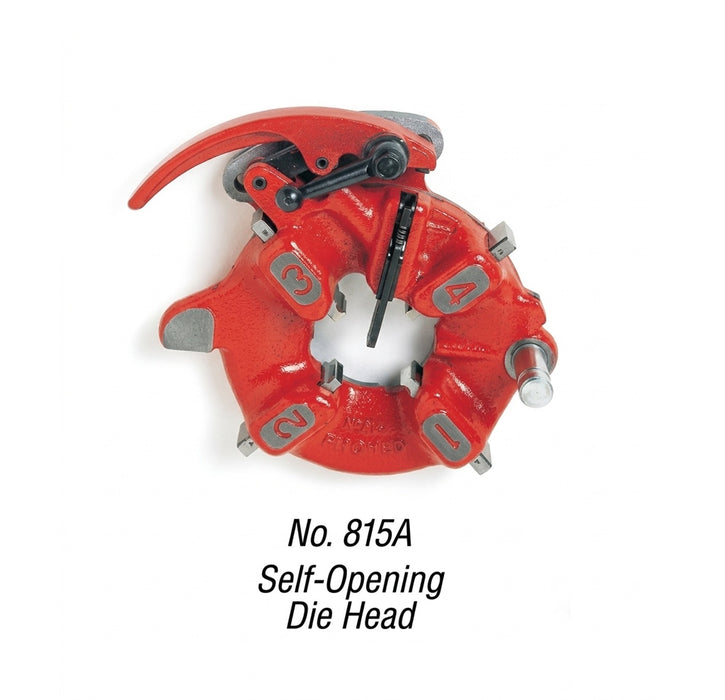

2. RIDGID Model 815A – Cat. No. 97075
The RIDGID 97075 Model 815A is a 1/8"–2" NPT Self-Opening Die Head for right-hand pipe threading. Unlike the 811A, the self-opening mechanism automatically releases the die head after the preset thread length is reached, helping produce repeatable thread lengths during repetitive threading operations. It also incorporates through-the-head oiling.
Key features
• Self-opening (S.O.) design
• Right-hand NPT threading
• Uses universal dies
• Through-the-head oiling
• Pipe capacity: 1/8"–2"
• Suitable for repetitive/production threading
• Compatible with applicable RIDGID threading machines.
