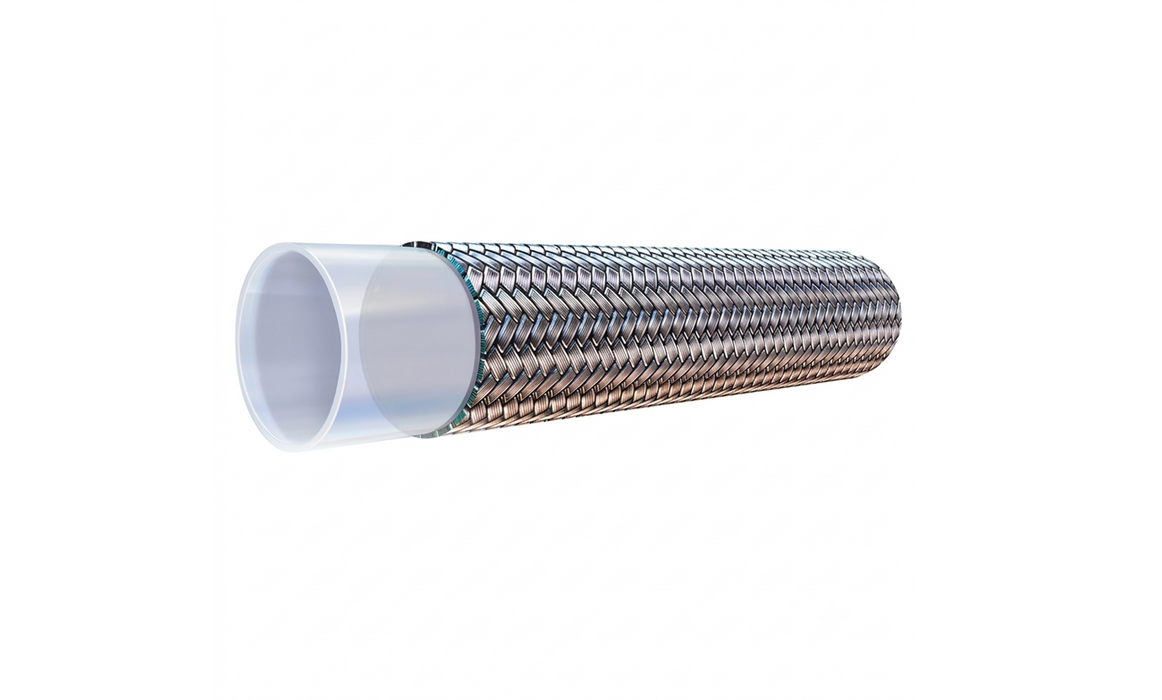

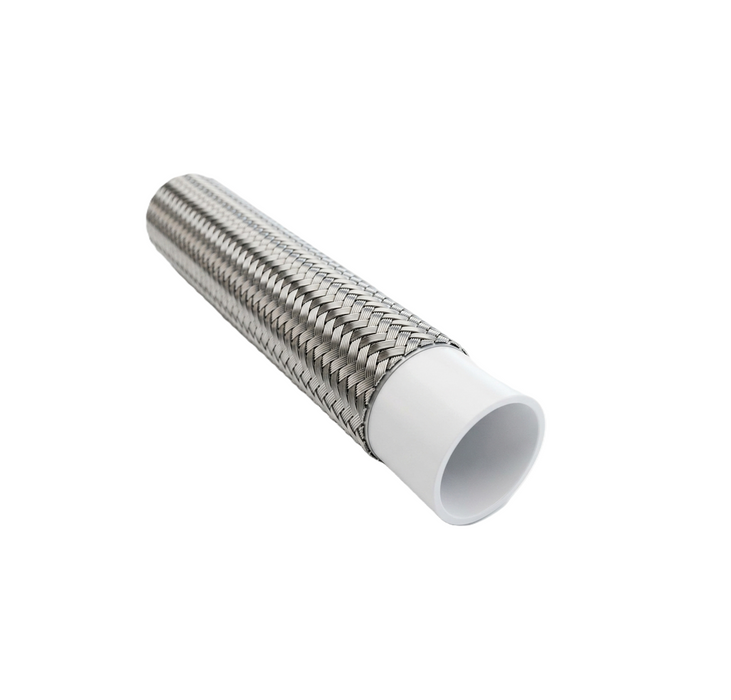

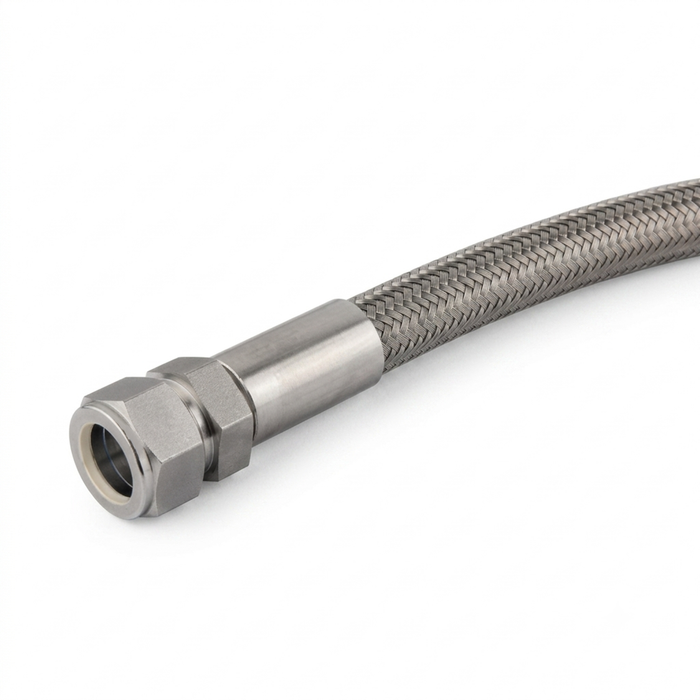

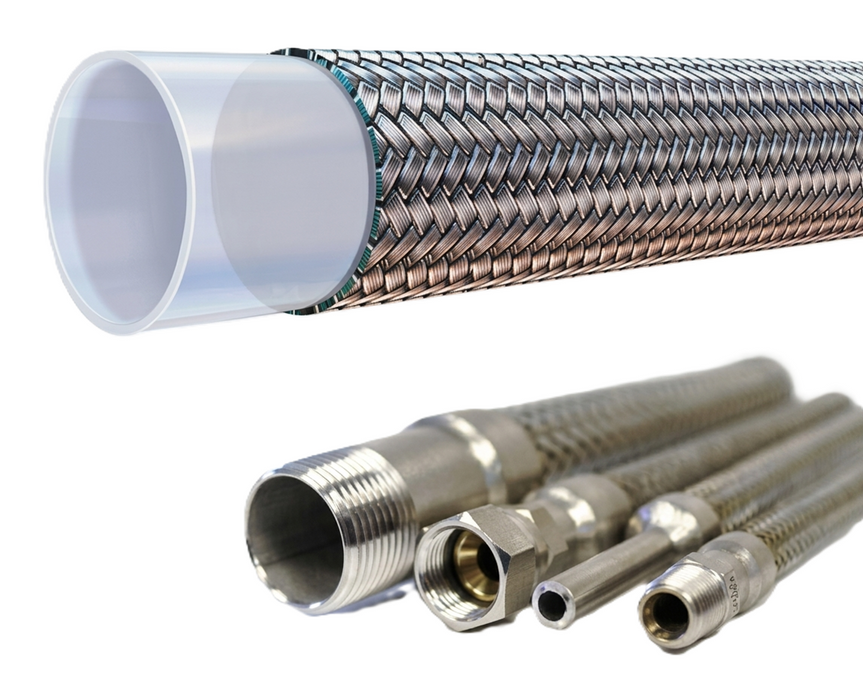

Everflex STW Series Smooth Bore PTFE Hose with SS304 Wire Braid is a premium industrial hose designed for demanding fluid transfer applications involving high temperatures, aggressive chemicals, steam, and compressed gases. Constructed with a smooth-bore, non-conductive PTFE inner tube reinforced by a high-strength SS304 stainless steel wire braid, it provides outstanding chemical resistance, durability, and flexibility while maintaining reliable pressure performance. The hose meets SAE 100R14A requirements and is suitable for hydraulic, pneumatic, chemical processing, food handling, pharmaceutical, and industrial applications where corrosion resistance and long service life are essential.
Key Features
• Smooth-bore, non-conductive PTFE inner tube
• Single or double SS304 stainless steel wire braid reinforcement
• Excellent resistance to chemicals, solvents, oils, fuels, and steam
• High-temperature performance from -54°C to +230°C (-65°F to +450°F)
• Meets SAE 100R14A specifications
• Low friction inner surface for efficient fluid flow and easy cleaning
• Suitable for steam, compressor discharge, chemical transfer, and hydraulic systems
The Everflex STW Series Smooth Bore PTFE Hose with SS304 Wire Braid is designed for transferring aggressive chemicals and high-temperature fluids while providing excellent flexibility and pressure resistance.
Use For: Chemical transfer, corrosive fluids, acids, solvents, hydraulic applications, steam service (where approved), food and beverage processing, pharmaceutical manufacturing, oil and fuel transfer, compressed gases, vacuum service, and high-temperature industrial fluid handling.
